Water Maker Parts
Cruise RO Water and Power can trace its beginnings to the company’s founder and owner, Rich, preparing to take his family cruising aboard SV THIRD DAY. On that moment, Rich decided to build his own high output watermaker to ensure his family wouldn’t suffer from water scarcity. This process also guaranteed a heavy-duty RO system would be available to deal with his water needs.
Because of our origins, we don’t look down on cruisers that want to build their own water maker. We understand builders choose this option is as a way to save money or just because they can. At Cruise Ro Water and Power, we support them.
In addition to providing complete water maker systems, we also sell individual water maker components. Our parts are ideal for cruisers looking to build their own water maker or to retrofit and upgrade their existing water maker.
Our customers can purchase our fully assembled water maker modules individually. Additionally, we also use our volume buying power to pass along savings on raw major water maker components. These include RO Membranes, RO Pressure Vessels, High-Pressure Pumps, Electric Motors, Prefilter Housings, and other parts.
Below is the pricing for our fully assembled modules along with our raw water maker components. If you have a specific request but don’t see it listed, just contact us via email, Skype or by phone. We will be happy to provide you a price quote on any of the parts we use to assemble our SeaMaker water makers.
Fully Assembled Module #1A
$1,600
Our fully assembled module #1A is made up of a 1.6 gpm General Pump Company stainless steel triplex plunger pump coupled to a 1.0 Hp 60 Hz Wattsaver Leeson motor.
Note: This watermaker module features 2-sea water outlet ports 3/8″ female NPT and 2-sea water inlet ports 1/2″ female NPT
Fully Assembled Module #1B
$1,900
Our #1B fully assembled module watermaker is composed of a 2.3 gpm General Pump Company stainless steel triplex pump coupled to a 1.5 Hp 60 Hz Wattsaver Leeson motor.
Note: The #1B module features 2-sea water outlet ports 3/8″ female NPT and 2-sea water inlet ports 1/2″ female NPT

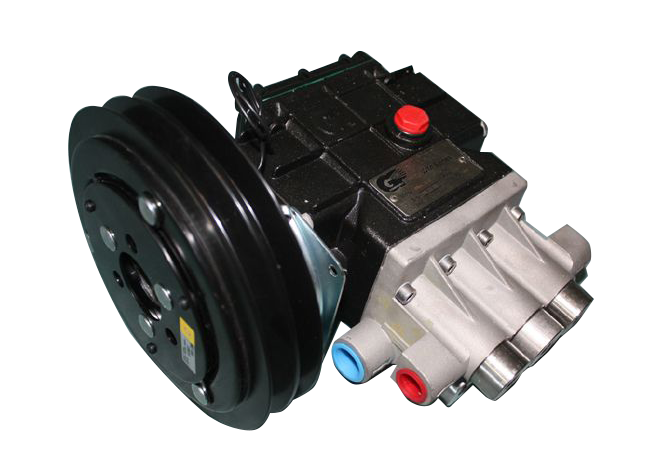

Fully Assembled Module #1C
$1,600
The fully assembled #1C module is made up of a 4.2GPM General Pump Company Stainless Steel Triplex Plunger Pump coupled to an electrically engaged 12v DC dual v-belt clutch. This watermaker module’s operational speed is 1750 RPM.
Note: The #1C fully assembled module features 2-sea water outlet ports 3/8″ female NPT and 2-sea water inlet ports 1/2″ female NPT

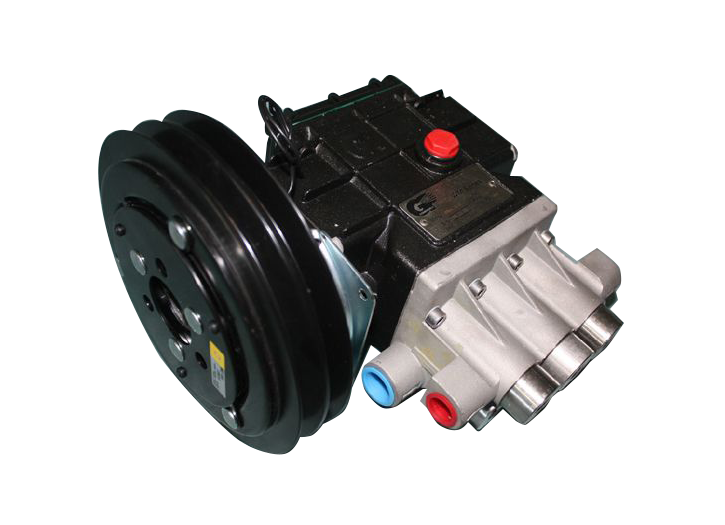

Fully Assembled Module #1D
$1,150
The fully assembled module #1D is made of a General Pump Company Stainless Steel Triplex Plunger Pump
Gallon per minute flow rates available in the #1D watermaker module include: 0.5, 0.8, 1.0, 1.6, 2.3, 3.0, 3.6, and 4.2GPM with C-face mounting flange included
Fully Assembled Module #1E
$1,800
Our #1E fully assembled watermaker module is composed of a 1.6 gpm General Pump Company stainless steel triplex pump coupled to a 1.0 Hp 50 Hz Wattsaver Leeson motor
Fully Assembled Module #1F
$2,100
The fully assembled module #1F is made up of a 2.3 gpm General Pump Company stainless steel triplex plunger pump coupled to a 1.5 Hp 50 Hz Wattsaver Leeson motor.
Fully Assembled Module #1G
$2,600
The #1G fully assembled watermaker module is nade of a 4.2GPM General Pump Company stainless steel triplex pump coupled to a 2.5 Hp WEG motor. The motor on our #1G watermaker module is a 60Hz/50Hz dual voltage motor.
Fully Assembled Module #2A
$775
The #2A watermaker module is made of one 40″ x 2.5″ high salt rejection Dow SW30-2540 RO Membrane housed in Spiral Wound Fiberglass Pressure Vessel fitted with fiberglass mounting feet and clamps. Total pressure vessel length is 42 5/16″
Note: the high pressure sea water inlet and brine outlet ports and the product water outlet ports in the #2A fully assembled module are all 1/4″ female NPT
Fully Assembled Module #2B
$1,575
Our fully assembled module #2B is composed of two 40″ x 2.5″ high salt rejection Dow Filmtec SM30-2540 RO Membrane housed in two Spiral Wound Fiberglass Pressure Vessel fitted with fiberglass mounting feet and clamps. The #2B is plumbed in series with 3/8″ stainless steel tubing.
Note: The three water connections: Sea water inlet, Brine outlet and Product water outlet are all 1/4″ female NPT fittings.
Module #2C
$425
Our water maker Pressure Vessels are designed and manufactured by us to fit the standard Dow Filmtec SM30-2540 RO Membrane. Features on our watermaker pressure vessels include: Anodized Aluminum end plugs and retaining clamps, 1/4″ female NPT Sea water inlet, Brine outlet and Product water outlet ports
Our watermaker module #2C includes end plug o-rings, product water seal o-rings, and SS allen screws to lock on end ring clamps. Total pressure vessel length is 42 5/16″
The module #2C is fabricated and tested to ASME 2011a Section X standards for safety and reliability
Module #2D
$275
The watermaker module #2D features the 2.5″ x 40″ Dow Filmtec SW30-2540 RO Membrane used in our Cruise RO Water water makers. This membrane is also used as a direct replacement for many water maker brands such as Spectra and EcoTech.
Brine seal o-ring included.
Fully Assembled Module #3A
$75
The fully assembled #3A watermaker module features dual Standard 10″ Filter housings with mounting bracket and 1/2″ female NPT inlet/outlet ports
Accepts the standard 9.75″ x 2.5″ filter elements
This unit can be used as pre-filtering for your water maker or as a dock water filtering unit with a 5 micron and activated carbon filter.
A 5 and 20 micron filter element are included.
Fully Assembled Module #3B
$30
Our #3B fully assembled watermaker module features industry Standard 10″ Filter Housing with clear sump and 1/2″ female NPT inlet/outlet ports
Accepts the standard 9.75″ x 2.5″ filter elements
