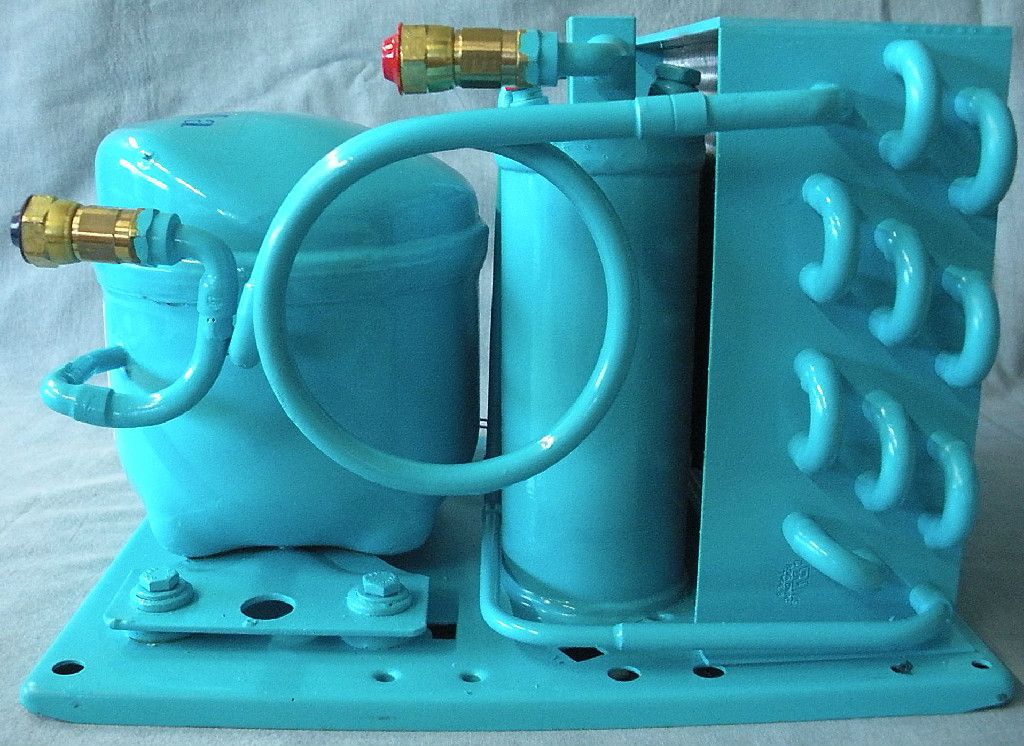

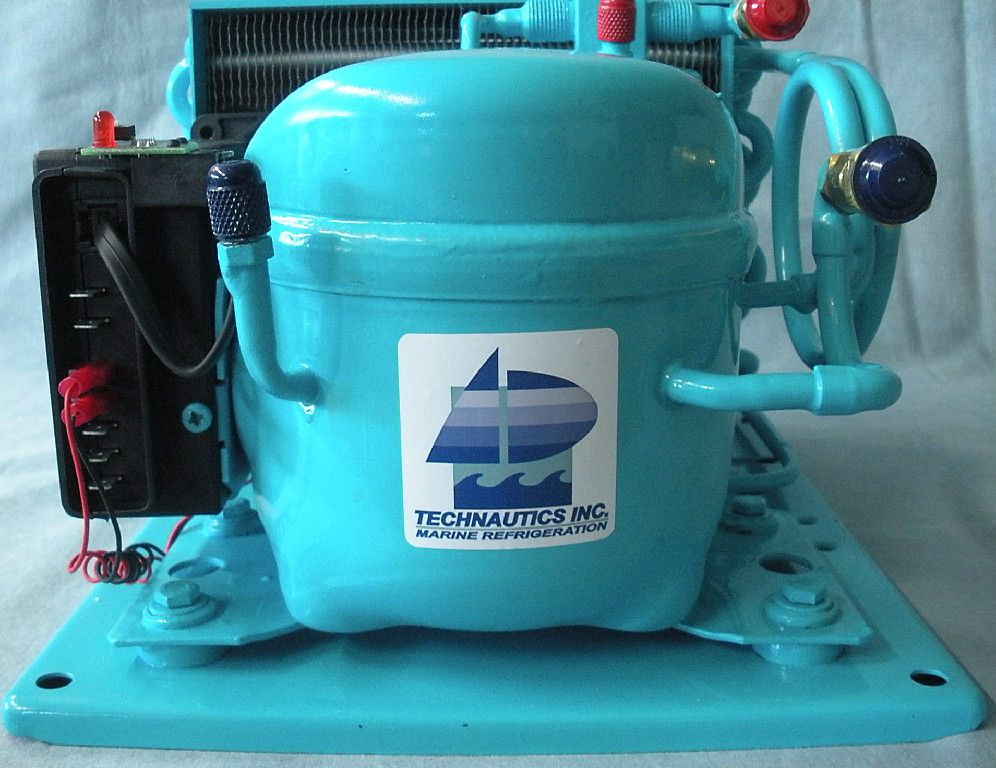

CoolBlue Compressor Condensing Unit:

$1,495

These standard condensing units are used in our CoolBlue refrigeration systems and can be used to upgrade an older 1970’s CoolBlue engine driven or 110v AC system to an efficient 12v system. If you have a boat with old holding plates, they rarely go bad so recycle them and revive the system with a new compressor condensing unit. Comes with our Standard 5 Year Warranty!

  • 1″ or 2.5″ or 4″ Holding Plate: $1200
  • 13″ x 24″ x 1″- 1100 Btu
  • 13″ x 24″ x 2.5″ – 2500 Btu (our Standard CoolBlue Holding Plate)
  • 13″ x 24″ x 4″ – 4000 Btu

Fitted with a Danfoss Thermally Adjusting Expansion Valve (TXV). The holding plate is filled with the proper eutectic solution for either a refrigerator or freezer plate. These plates are identical to our standard plates used in our CoolBlue refrigeration systems. Custom size holding plates are available and quoted upon request.

UPGRADES + ADD-ONS

Electronic Control Module for the CoolBlue Compressor:
The DC compressors used in the CoolBlue systems are controlled by an electronic module. Several different models of DC compressors have been used in our systems over the years as newer more efficient compressors emerge, so when ordering a replacement or spare electronic module, we will need to verify the brand of compressor your system is using (Danfoss, ACC or Cubigel). A photo of your compressor condensing unit is all we will need to know the brand of electronic module you need or just give us a call and a few easy questions will help identify the correct brand.

The recharge kit contains two 12oz cans of the environmentally friendly R-134a refrigerant, a charging hose, valve, and adapter to connect to the charging port on the CoolBlue compressor. Also included is a low pressure refrigeration gauge to verify proper running of the system.

This is the standard mechanical thermostat used in the CoolBlue system. A different thermostat is used for a freezer or refrigerator plate, so please specify when ordering.

This remote panel mount temperature display allows you to view the LED temperature on the panel mount display.

This 12v 0.35A fan is mounted on the CoolBlue compressor condensing unit’s fin-tube heat exchange to assist in cooling and blowing cool air on the compressor and electronic module during system operation.

Used in the refrigerator or freezer box to assist in equalizing the box temperature, this fan can be used as a stand alone unit or in conjunction with our air ducting to assist in circulating air in your box.

DOWNLOAD EVEN AIR FLOW MANUAL

To download a copy of the CoolBlue Refrigeration manual with technical specifications along with detailed installation and operation instructions, click the button to the right
