Schenker Modular Systems for Seawater Desalination
Modular Watermakers
Modular desalination systems are an effective solution to turn salt water into drinking water. Whether you own a personal use boat or a bigger operation, they are ideal for a wide range of boats of different capacities. They are very compact units based on split membranes. Modular watermakers feature a large choice of output range ( up to 500 lit/h) to satisfy all needs. Furthermore, these reverse osmosis systems are available with 3 different control options.
SEE MODULAR MODELS BELOW FOR SPECIFICS AND OPTIONS

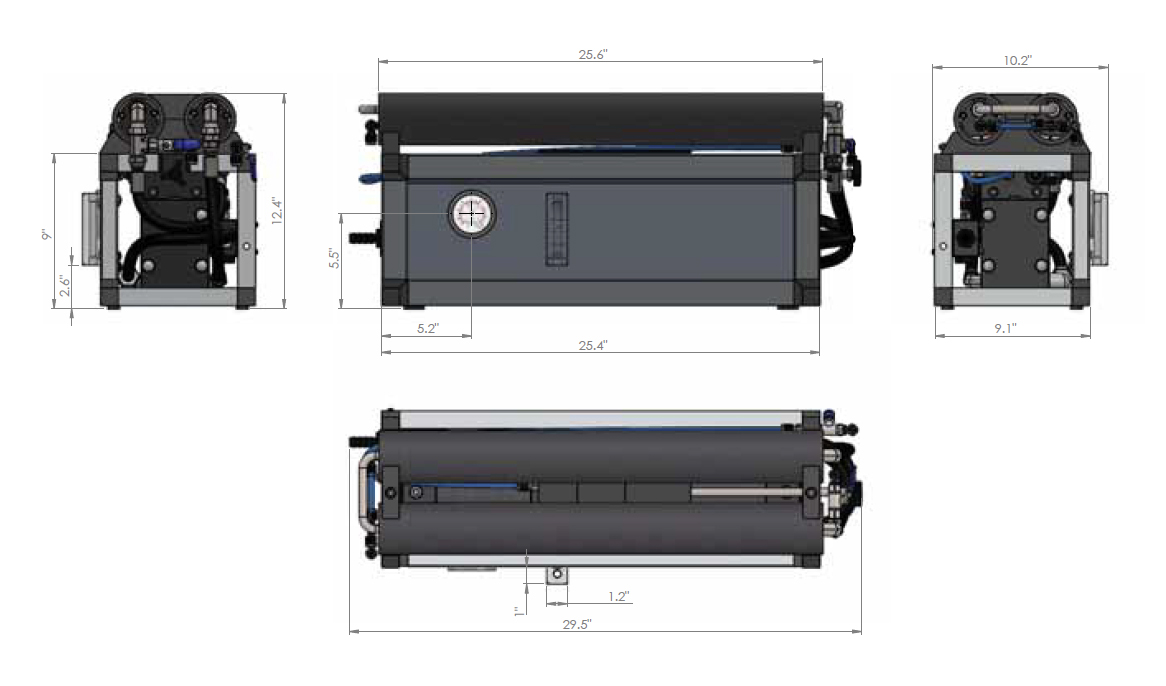

Modular 35
Modular 35 is the Schenker seawater desalination system ideal for a crew of 1 to 4 people. This portable seawater desalination plant can produce clean water in a 30 to 40 feet sailboat. It is also a great option for ensuring water supplies in a 25 to 35 feet power boat or catamaran.
- Capacity: 35 lit/h | Gal/h 9
- Power Supply: 12 / 24 VDC
- Consumption: 100 watt
- Weight: 31 Kg - 68.34 Lb
- Membranes: Two - 2.5" x 21"
$8,560 (Modular 35) Basic Version
$9,560 (Modular 35) Digital Version
$10,260 (Modular 35) Touch Version
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
Basic Version
- Automatic pressure regulation
- High pressure block
- Low voltage block

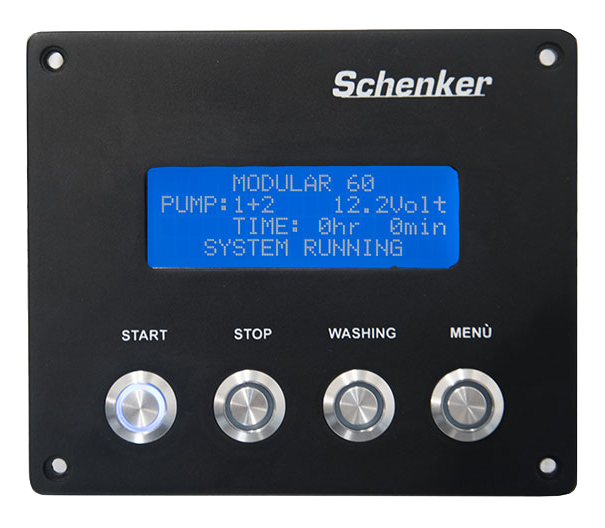

Digital & Touch Version
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
Remote start/stop- Watermaker flushing
- Timer
- Dimensions: 100x66mm
Remote start/stop- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

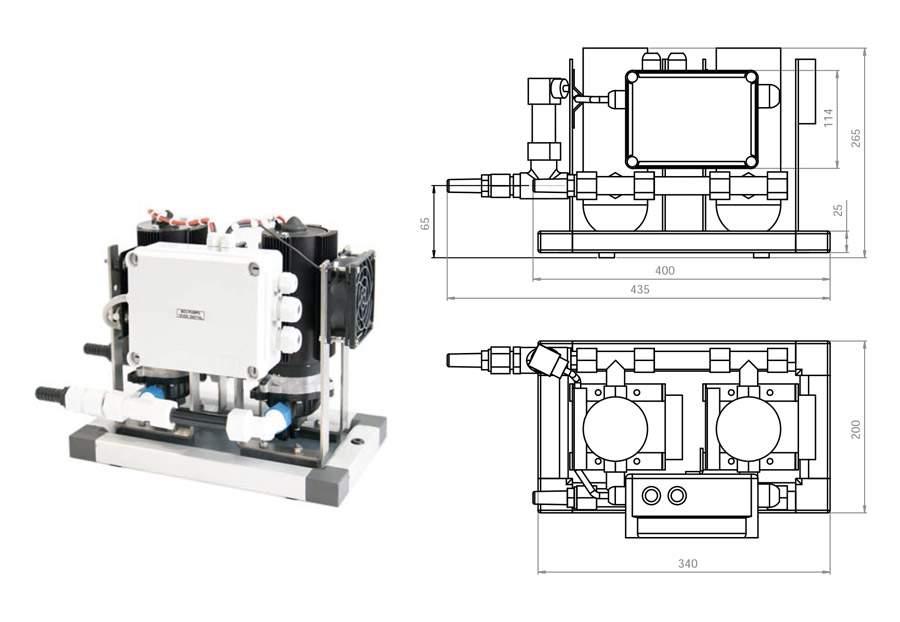

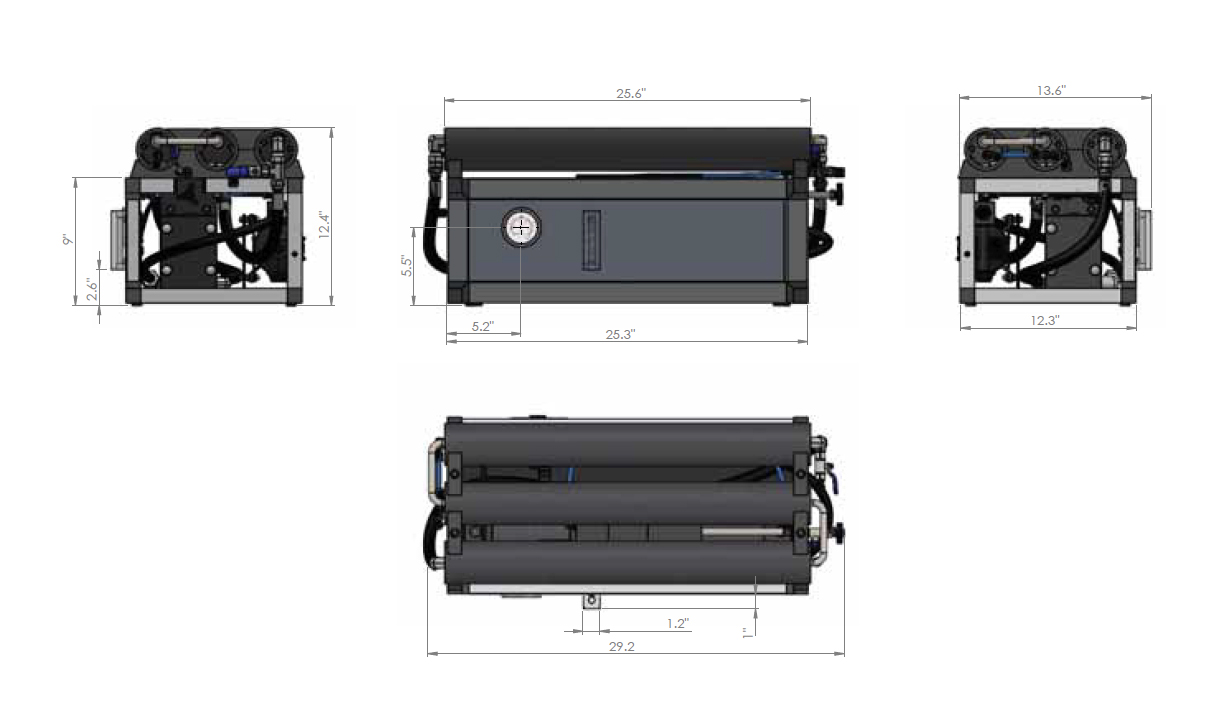

Modular 60
Modular 60 is the ideal solution to turn salt water into drinking water for a crew of 4 to 6 people. This system can provide fresh water for a 35-45 feet sailboat. Additionally, this Schenker watermaker is ideal for a 30 to 40 feet power boat or catamaran.
- Capacity: 60 lit/h | Gal/h 15.8
- Power Supply: 12 / 24 VDC or AC
- Consumption: 240 watt
- Weight: 38 Kg - 83.78 Lb
- Membranes: Three - 2.5" x 21"
$10,120 (Modular 60) Basic Version
$11,120 (Modular 60) Digital Version
$11,820 (Modular 60) Touch Version
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
Basic Version
- Automatic pressure regulation
- High pressure block
- Low voltage block
Digital & Touch Version
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote start/stop
- Watermaker flushing
- Timer
- Dimensions: 100x66mm
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

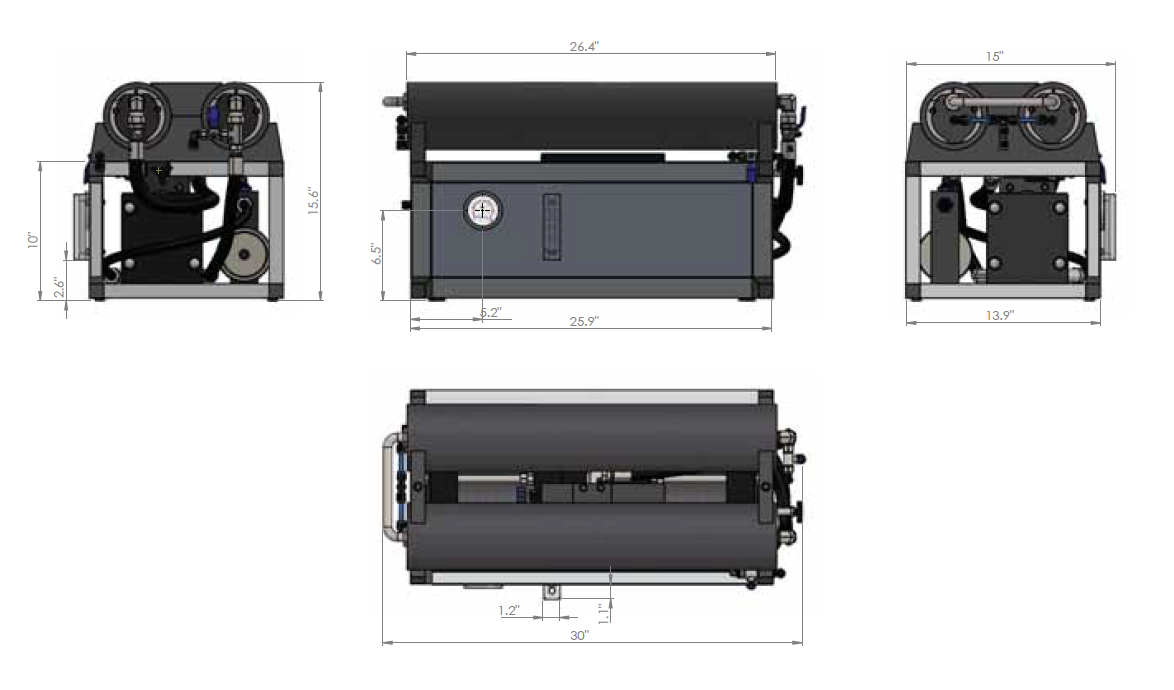

Modular 100
Modular 100 is ideal for producing fresh drinking water for boats carrying a crew of 6 to 8 people. It provides an energy-efficient seawater desalination system for a 45 to 55 feet sailboat. The Modular 100 can also help prevent water shortage in a 35 to 45 feet power boat or catamaran.
- Capacity: 100 lit/h | Gal/h 26.4
- Power Supply: 12 / 24 VDC or AC
- Consumption: 400 watt
- Weight: Weight: 58 Kg - 127,87 Lb
- Membranes: Two - 4" x 21"
$12,670 (Modular 100) Basic Version
$13,670 (Modular 100) Digital Version
$14,370 (Modular 100) Touch Version
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
Basic Version
- Automatic pressure regulation
- High pressure block
- Low voltage block
Touch Version
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote start/stop
- Watermaker flushing
- Timer
- Dimensions: 100x66mm
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm

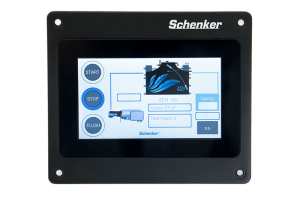

TOUCH PANEL FEATURES
TOUCH PANEL FEATURES- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

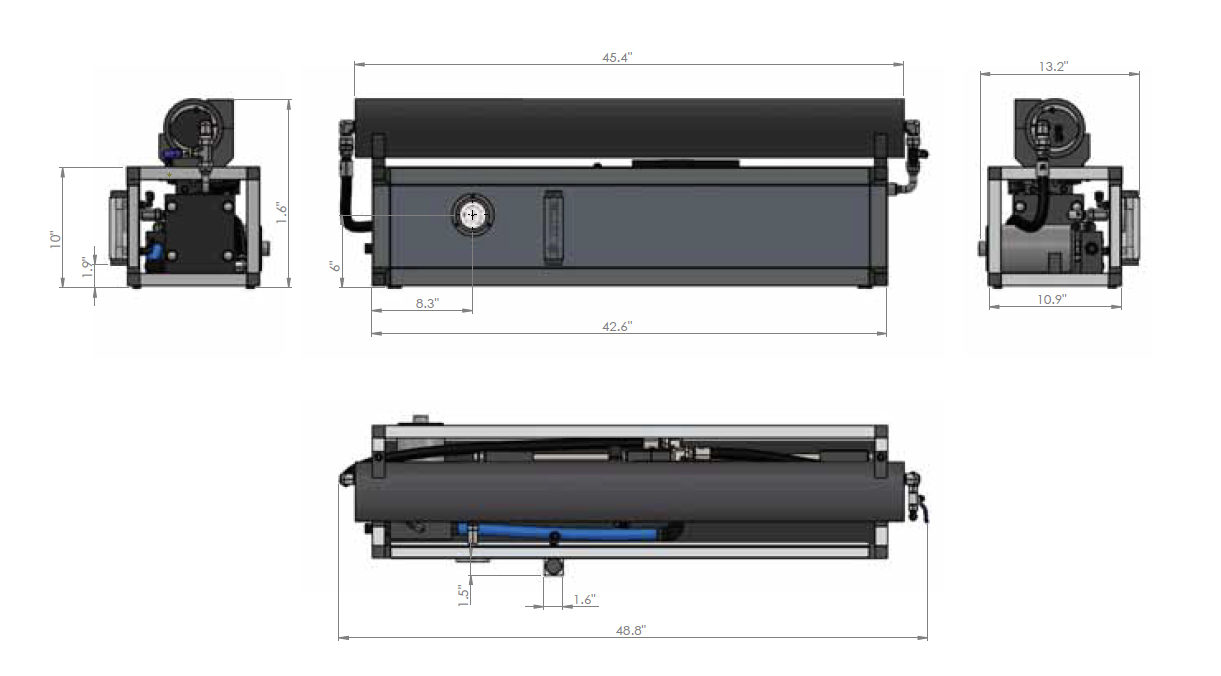

Modular 150
Modular 150 is the seawater desalination unit ideal for a crew of 8 to 10 people. This watermaker can prevent water scarcity in a 50 to 60 feet sailboat. It also works to turn salt water into drinking water in a 40 to 50 feet power boat or catamaran.
- Capacity: 150 lit/h | Gal/h 39.6
- Power Supply: 24 VDC or AC
- Consumption: 600 watt
- Weight: 69 Kg - 152,12 Lb
- Membranes: Two - 4" x 40"1
$16,200 (Modular 150) Digital Version
$16,900 (Modular 150) Touch Version
- Watermaker fitted with Energy Recovery System

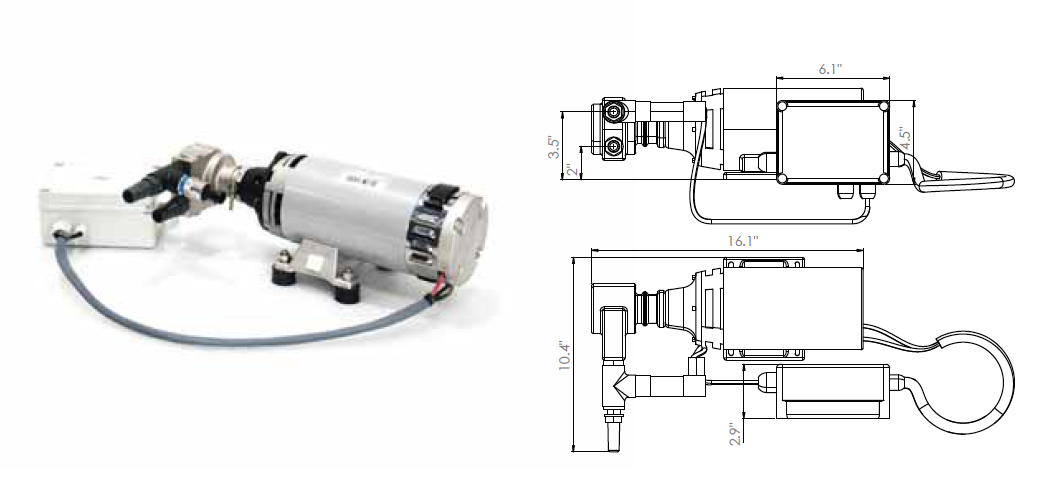

- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

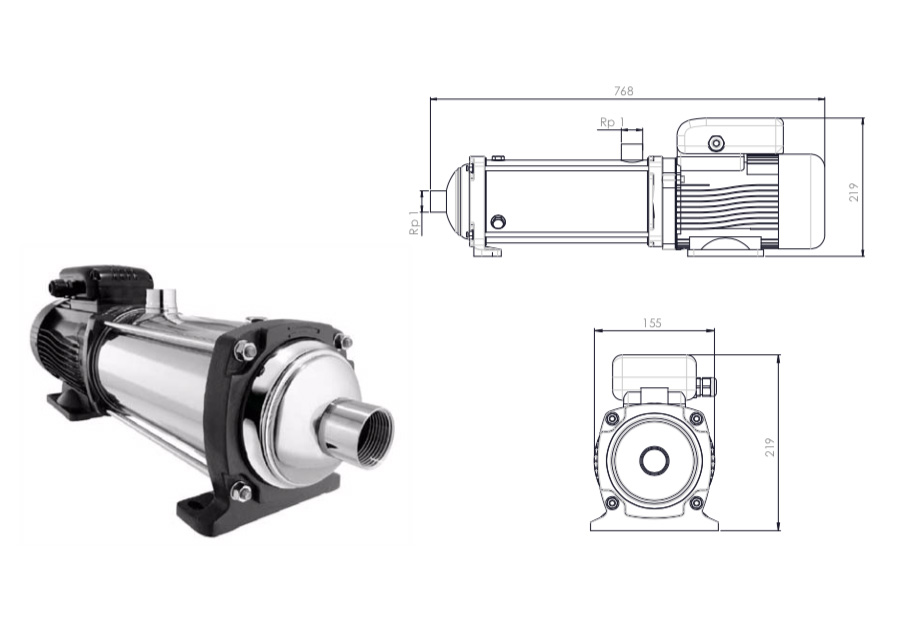

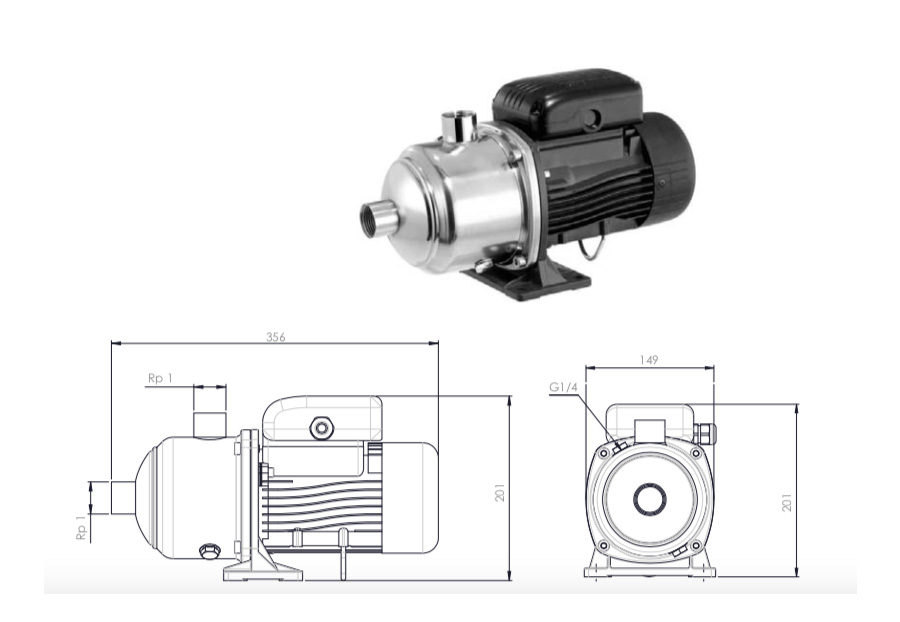

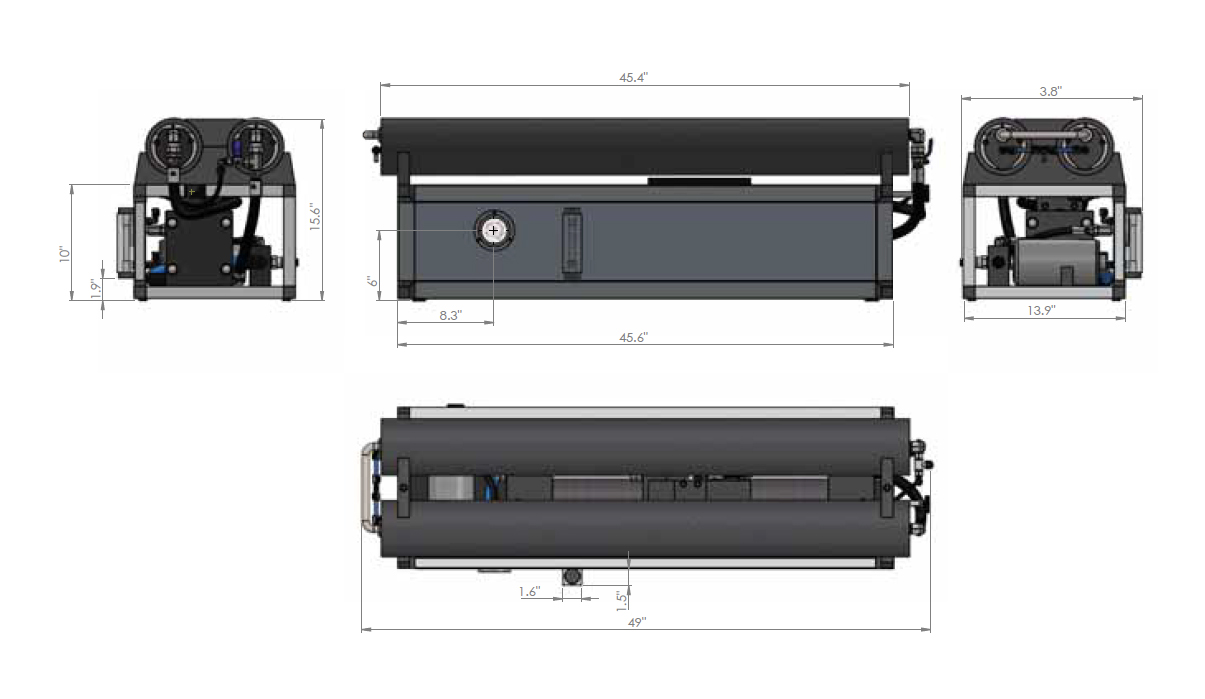

Modular 230
Modular 230 is the watermaker ideal for a crew of 10 to 12 people. It can provide desalinated water for a 55 to 60 feet sailboat. The Modular 230 is also the right seawater desalination system for a 50 to 60 feet power boat or catamaran.
- Capacity: 230 lit/h | Gal/h 61
- Power Supply: AC single or three phase
- Consumption: 1,5 K watt
- Weight: Weight: 95 Kg - 209,44 Lb
- Membranes: Two - 4" x 40"
$25,970 (Modular 230) Digital Version
$26,670 (Modular 230) Touch Version
- Watermaker fitted with Energy Recovery System

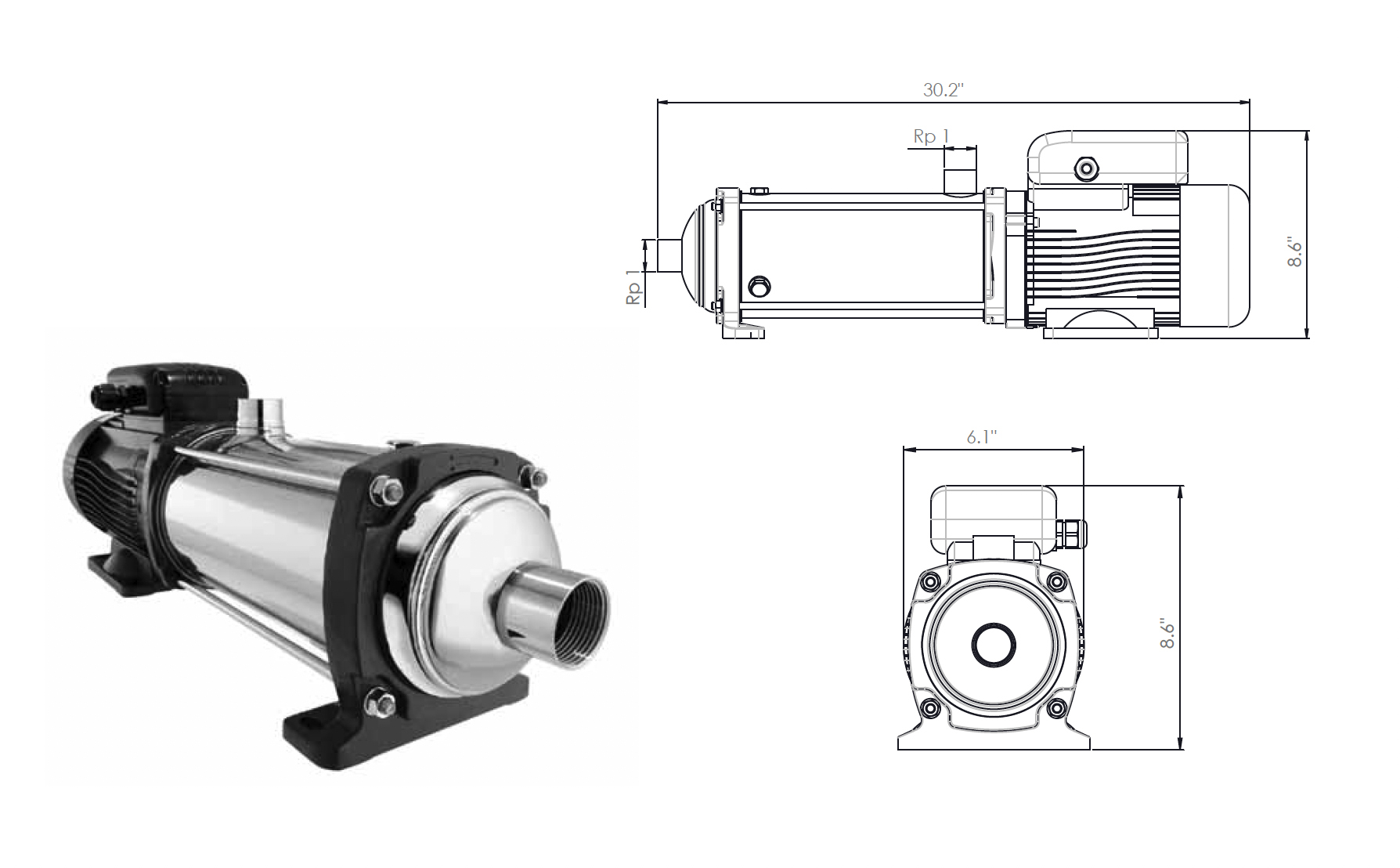

- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm
Modular 300
Modular 300 is the Schenker system ideal for a crew of 12 to 400 people. This watermaker can turn salt water into drinking water for a 60 to 70 feet sailboat. The Modular 300 is also ideal for a 55 to 65 feet power boat or catamaran.
- Capacity: 300 lit/h | Gal/h 79
- Power Supply: AC single or three phase
- Consumption: 2.5 kWatt
- Weight: 145 Kg - 319,67 Lb
- Membranes: Three - 4" x 40"
$24,000 (Modular 300) Digital Version
$25,000 (Modular 300) Touch Version
- Watermaker fitted with Energy Recovery System

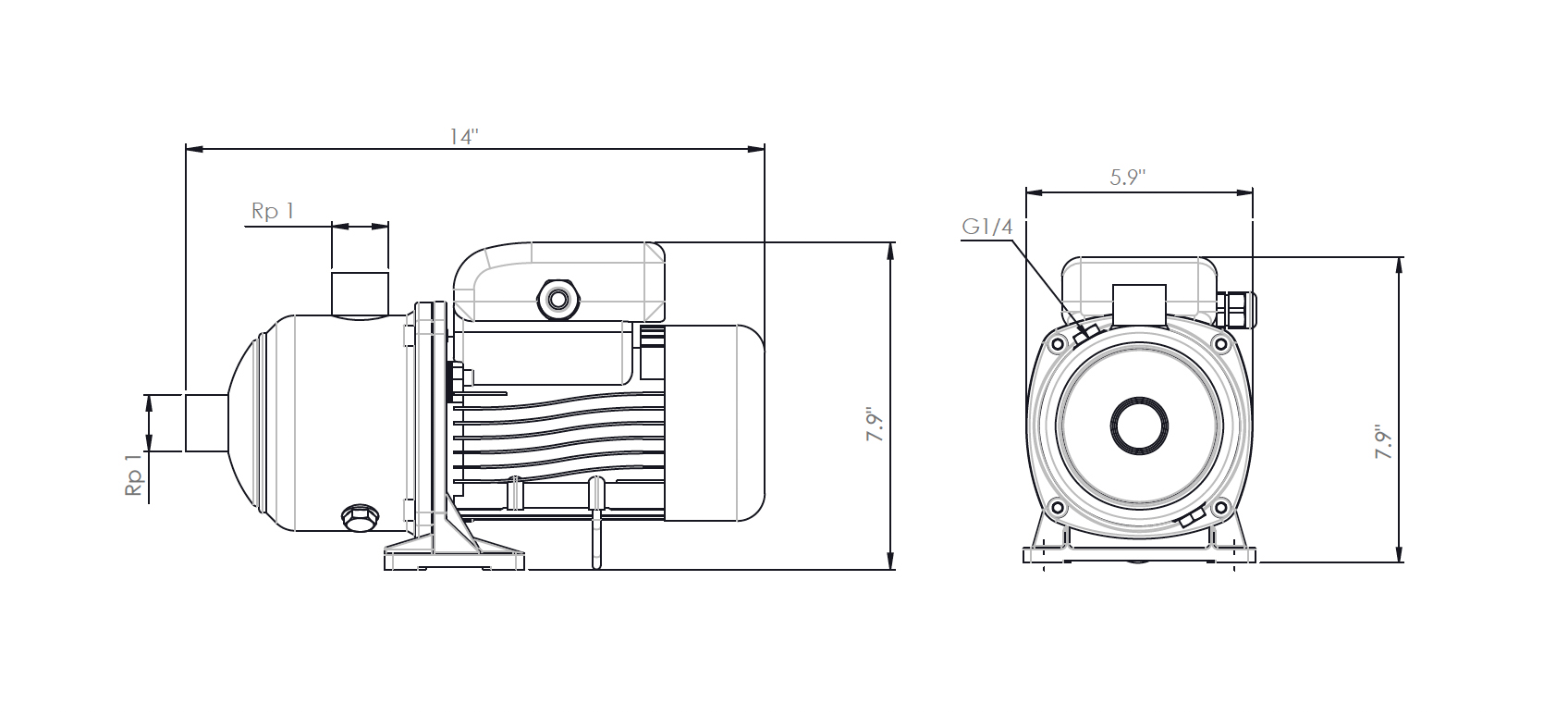

- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

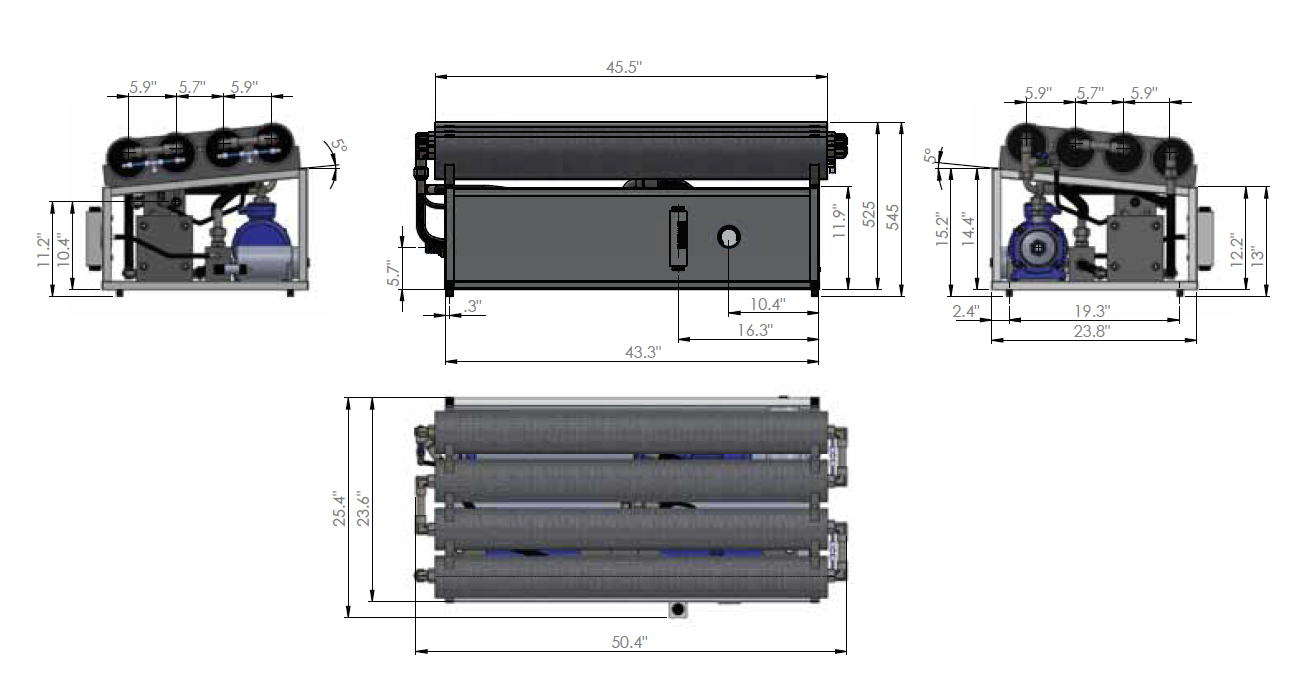

Modular 500
Modular 500 is the seawater desalination system ideal for a crew of 14-20 people. It is effective at removing salt from seawater for a 70 to 100 feet sailboat. This watermaker can also provide non saline water for a 65 to 80 feet power boat or catamaran.
- Capacity: 500 lit/h | Gal/h 132
- Power Supply: AC three phase
- Consumption: 3.5 kWatt
- Weight: 180 Kg - 396,83 Lb
- Membranes: Four - 4" x 40"
Upon Request (Modular 230) Digital Version
Upon Request (Modular 230) Touch Version
- Watermaker fitted with Energy Recovery System

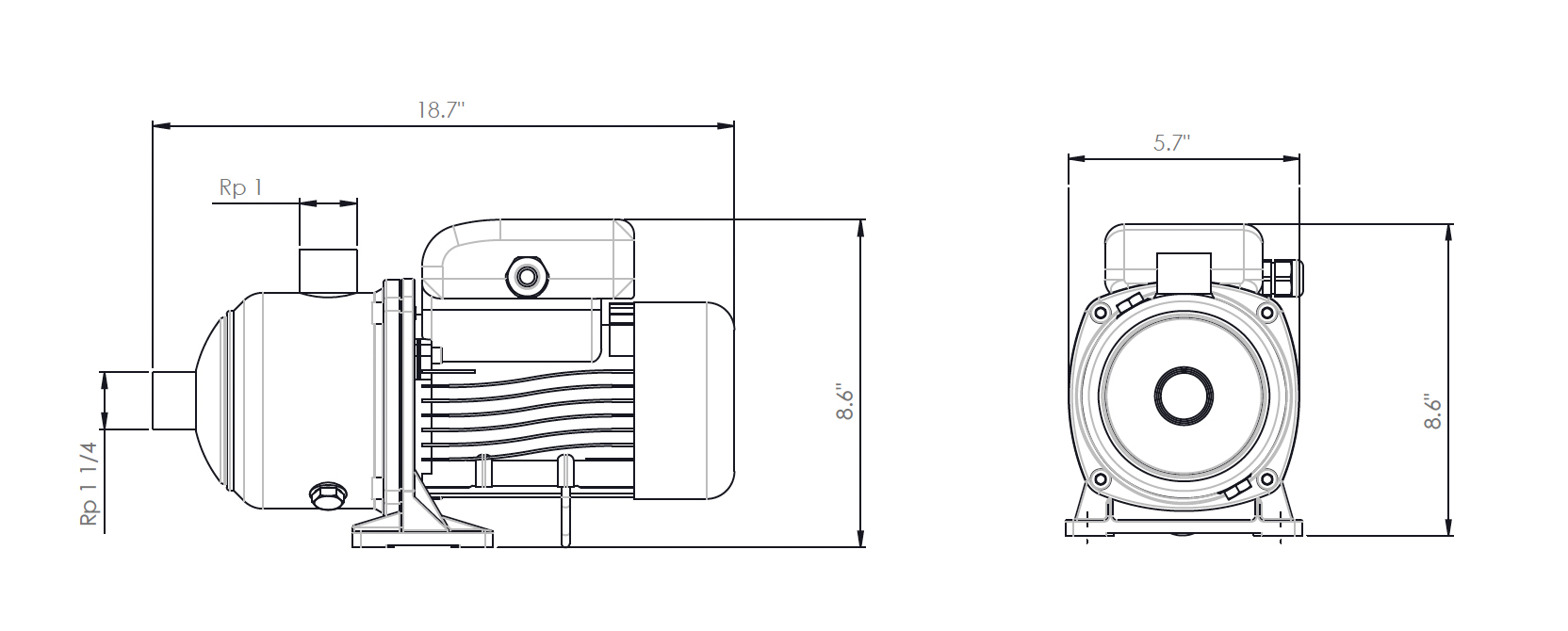

- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Raymarine compatible
- Dimensions: 135x115mm
TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm
Zen technology is patented. PATENTS: IT102018000010303 EP3653583-A, EU Registered design No 005823747
