Schenker Zen Energy Recovery Portable Desalination System
Zen Watermakers
You can find all components integrated in the main manifolds and there are very few external components like fittings, pipe, valves. These features make the Zen seawater desalination system very compact, with a special ultra-flat design. The Zen seawater reverse osmosis units can easily fit into tight spaces, which means you can easily install them in every position, horizontally and vertically. This portable desalination device is not much bigger than a briefcase!
INSTALLATION
Zen Seawater Desalination System Models
Wiki 30
Wiki 30 is ideal for boating & camping, off-grid travel and emergencies, since it converts brackish or seawater into safe drinking water. Running on 12/24VDC with low power consumption (110W), it is energy-efficient, reliable and won’t drain your power supply.
Setting up is effortless with a simple on/off control, and the peace of mind of a 3-year warranty on the Energy Recovery System makes the Wiki Desalination Unit the ideal water solution for every outdoor adventure.
$6,780 (Aquatrek 30)
- Capacity: 30 LIT/H | 7.9 GAL/H
- Power Supply: 12/24 V
- Consumption: 110 W
- Weight: 26 Kg - 57 lb
- Membranes: n°1 2,5" x 21"
- Filters: 50 mesh strainer - 5 micron melt blown 5" x 2½"
- Inlet Hose: i.d. 16mm length 10mt
- Discharge Hose: i.d. 16mm length 5mt
- Permeate Hose: i.d. 6mm length 5mt
- Suction Capacity: Horizontal 10mt - Vertical 1mt
Zen 30
Zen 30 is the Schenker reverse osmosis system ideal for a crew of 1-4 people. A Zen 30 seawater desalination system provides enough drinking water for a 30-40 feet sailboat or in a 25-35 feet power boat or catamaran.
- Capacity: 30 lit/h | Gal/h 7.9
- Power Supply: 12 / 24 VDC
- Consumption: 110 watt
- Weight: 21 Kg - 46,30 Lb
- Membranes: One - 2.5" x 21"
$6,560 (Zen 30)
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low voltage block
Remote start/stop- Watermaker flushing
- Timer
- Dimensions: 100x66mm
Remote start/stop

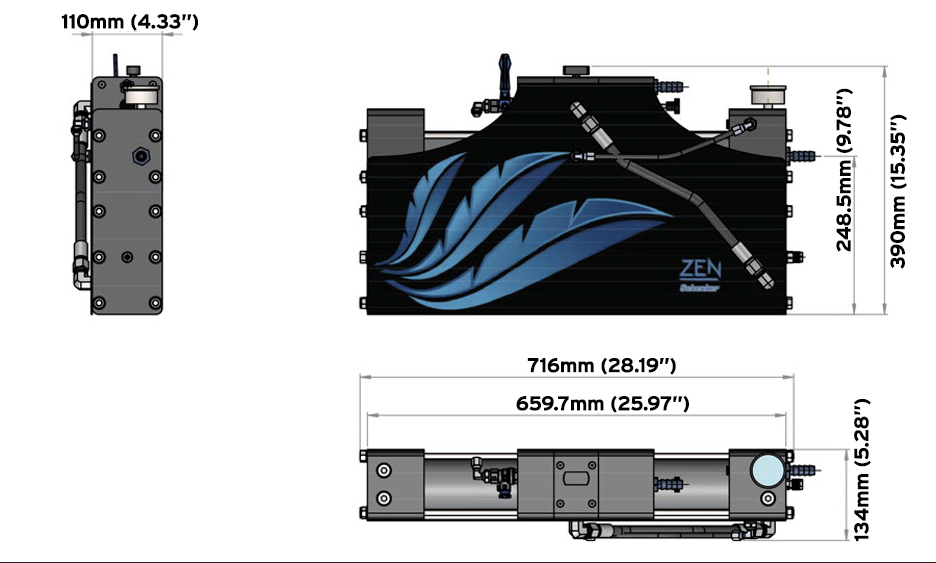

Zen 50
Zen 50 is the portable desalination unit ideal for a crew of 4-6 people. It can supply water in a 35-45 feet sailboat or in a 30-40 feet power boat or catamaran. This portable device has a 50 lit/h (13.2 Gal/h).
The Zen50 water maker is a user-friendly seawater desalination system that consumes 240 watt. 12-24 VDC energy efficient power supply.
- Capacity: 50 lit/h | Gal/h 13.2
- Power Supply: 12 / 24 VDC
- Consumption: 240 watt
- Weight: 30 Kg - 66,14 Lb
- Membranes: Two - 2.5" x 21"
$8,210 (Zen 50)
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low voltage block
- Remote start/stop
- Watermaker flushing
- Timer
- Dimensions: 100x66mm
Zen 100
Zen 100 is the Schenker portable desalination device ideal to generate drinking water for a crew of 6-8 people. This desalination plant can efficiently provide water for a 45-55 feet sailboat or in a 35-45 feet power boat or catamaran.
- Capacity: 100 lit/h | Gal/h 26.4
- Power Supply: 12 / 24 VDC or AC
- Consumption: 400 watt
- Weight: Weight: 49 Kg - 108,02 Lb
- Membranes: Two - 4" x 21"
$12,470 (Zen 100) Basic Unit
$14,470 (Zen 100) Touch Unit
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
Basic Version
- Automatic pressure regulation
- High pressure block
- Low voltage block
Touch Version
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote start/stop
- Watermaker flushing
- Timer
- Dimensions: 100x66mm
TOUCH PANEL FEATURES
TOUCH PANEL FEATURES- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm
Zen 150
Zen 150 is the portable desalination system ideal for providing access to clean water to a crew of 8-10 people. This system can guarantee an efficient water supply in a 50-60 feet sailboat or in a 40-50 feet power boat or catamaran.
- Capacity: 150 lit/h | Gal/h 39.6
- Power Supply: 24 VDC or AC
- Consumption: 600 watt
- Weight: 61 Kg - 134,48 Lb
- Membranes: Two - 4" x 21"
$14,930 (Zen150) Basic Unit
$16,930 (Zen150) Touch Unit
- Watermaker fitted with Energy Recovery System
- Boost pump with 5 micron filter
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water hose (5 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
Basic Version
- Automatic pressure regulation
- High pressure block
- Low voltage block
Touch Version
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
- Remote start/stop
- Watermaker flushing
- Timer
- Dimensions: 100x66mm
TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm

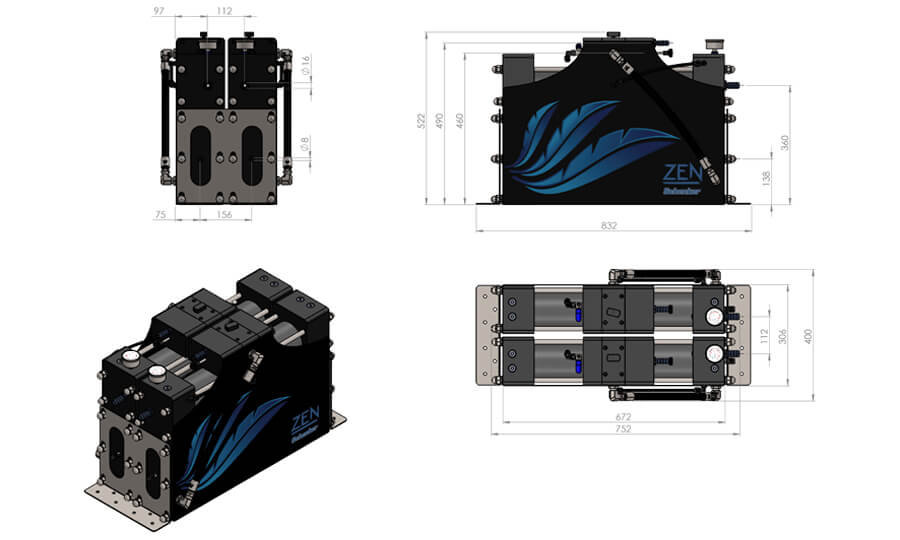

Zen Twin 200
The ZEN Twin 200 is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy.
- Capacity: 200 lit/h | Gal/h 53
- Power Supply: 12 / 24 VDC or AC
- Consumption: 800 watt
- Weight: Weight: 102 Kg - 224,87 Lb
- Membranes: Two - 4" x 21"
$25,290
- Double watermaker fitted with Energy Recovery System
- Double pump with filter
- Double active carbon filter with electrovalve
- Net filter
- Filters key
- Double non return valve
- Fresh water hose (10 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block
TOUCH PANEL FEATURES
TOUCH PANEL FEATURES- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 120x80mm
2x
Zen Twin 300
Zen Twin 300 is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy.
- Capacity: 300 lit/h | Gal/h 79
- Power Supply: 24 VDC or AC
- Consumption: 1,2 kWatt
- Weight: 120 Kg – 264,56 Lb
- Membranes: Two - 4" x 21"
$29,850
- Double watermaker fitted with Energy Recovery System
- Double pump with filter
- Double active carbon filter with electrovalve
- Net filter
- Filters key
- Double non return valve
- Fresh water hose (10 mt.)
- Remote panel
- Installation kit (assortment of fittings and screws)
- Owner manual
- Automatic pressure regulation
- High pressure block
- Low pressure block
- No cycling block
- Low voltage block

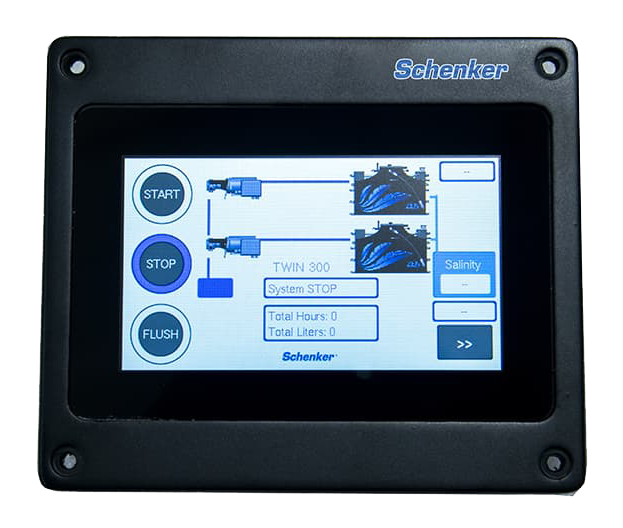

TOUCH PANEL FEATURES
- Remote Start/Stop
- Timer
- Automatic flushing
- Intensive flushing
- Periodic flushing
- Hours counter
- Automatic start up
- Assisted maintenance
- Salinity monitoring (optional)
- Flow meter (optional)
- Pressure meter (optional)
- Dimensions: 135x116mm
2x
Zen technology is patented. PATENTS: IT102018000010303 EP3653583-A, EU Registered design No 005823747
